Single Mode FTTH Drop Cable G657A1 G652D Zero Halogen Flame Retardant Sheath

  • 1
  • 2

Brand Name : MingTong

Certification : ROHS,Anatel

Place of Origin : Dongguan CHINA

Price : 300-2000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : FTTH Drop Cable

Item NO. : GJYXCH

Core Numbers : 4cores

Mode Type : Single Mode

Self-Supporting Strength Member : 2FRP+1steel Wire

Applications : Horizontal Cabling

Sample Status : In Stock

Highlight : Single Mode FTTH Drop Cable, LSZH G657A1 FTTH Drop Cable, G657A1 Zero Halogen FTTH Cable

Contact Now

Single Mode FTTH Drop Cable G657A1 G652D Zero Halogen Flame Retardant Sheath

Single Mode FTTH Drop Cable G657A1 G652D Zero Halogen Flame Retardant Sheath
FTTH Drop Cable G657A1 G652D 1 2 4 Core Outdoor Fiber Optic Cable With FRP

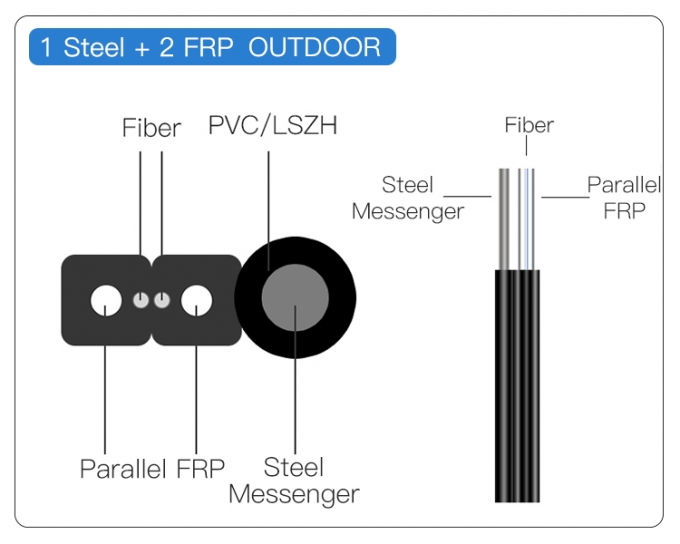

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.

Optical Characteristics
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Simple structure, light weight and high practicability;
3. Novel flute design, easily strip and splice, simplify the installation and maintenance;
4. Low smoke, zero halogen and flame retardant sheath.

Application

Used as access building cable
Used in indoor cabling especially used for FTTH

Structure

Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 5.0*2.0
Weight Kg/km Approx.21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70

Test Datasheet

Category Description Specifications
G.657A1
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
@1383±3nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB

Geometric

Specifications

 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm

Mechanical

Specifications

 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

Single Mode FTTH Drop Cable G657A1 G652D Zero Halogen Flame Retardant Sheath

Single Mode FTTH Drop Cable G657A1 G652D Zero Halogen Flame Retardant Sheath

Single Mode FTTH Drop Cable G657A1 G652D Zero Halogen Flame Retardant Sheath
